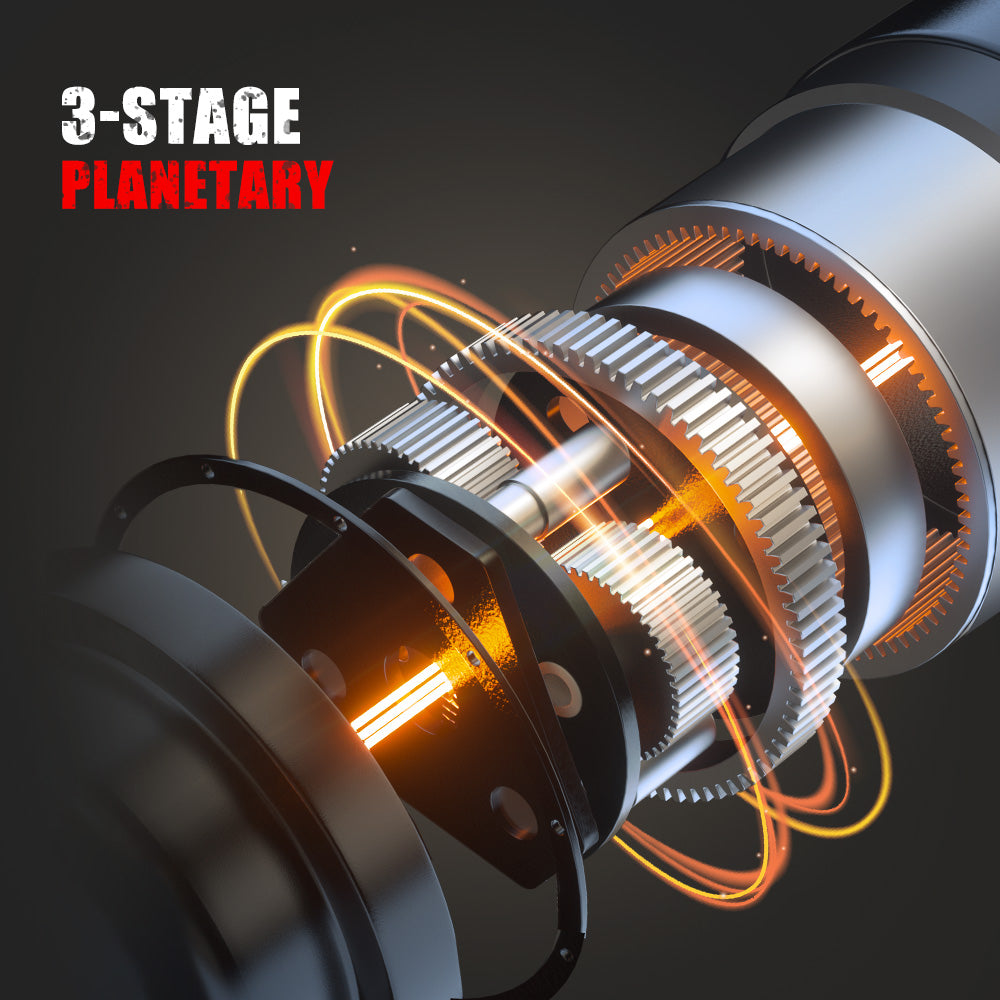

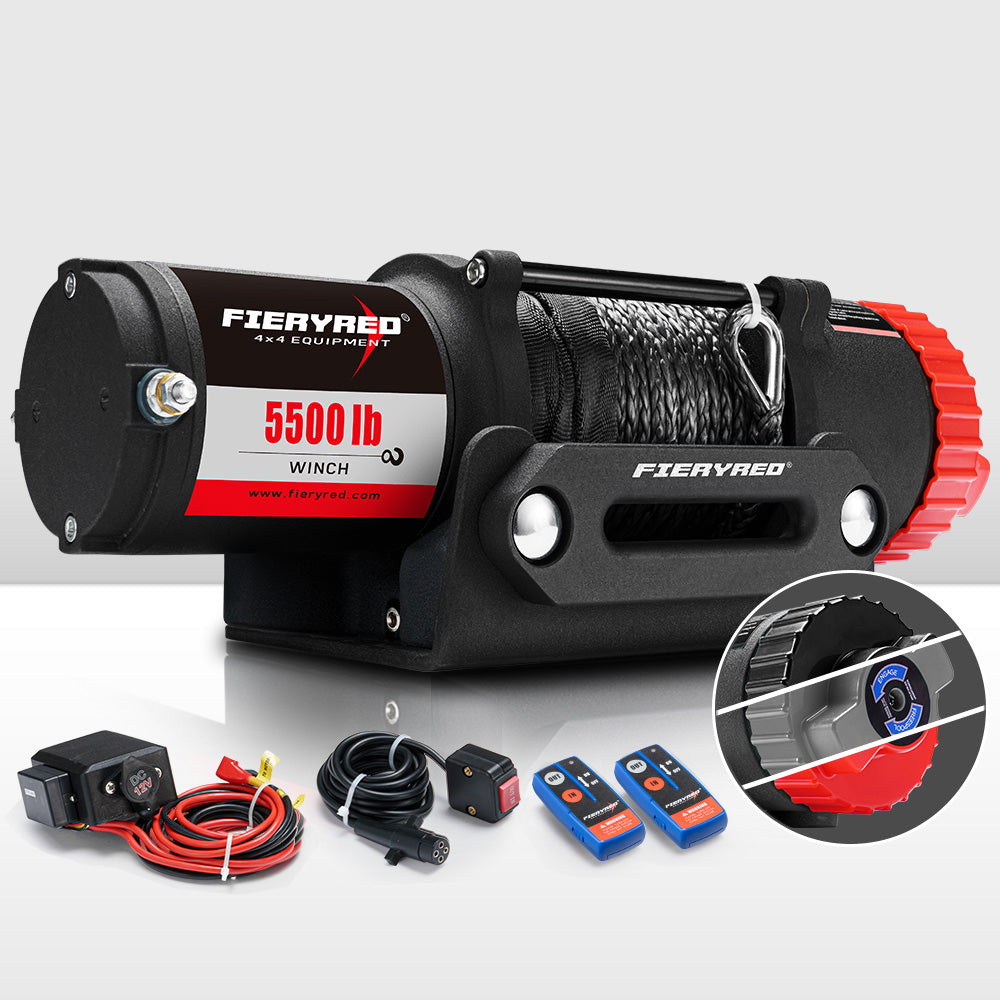

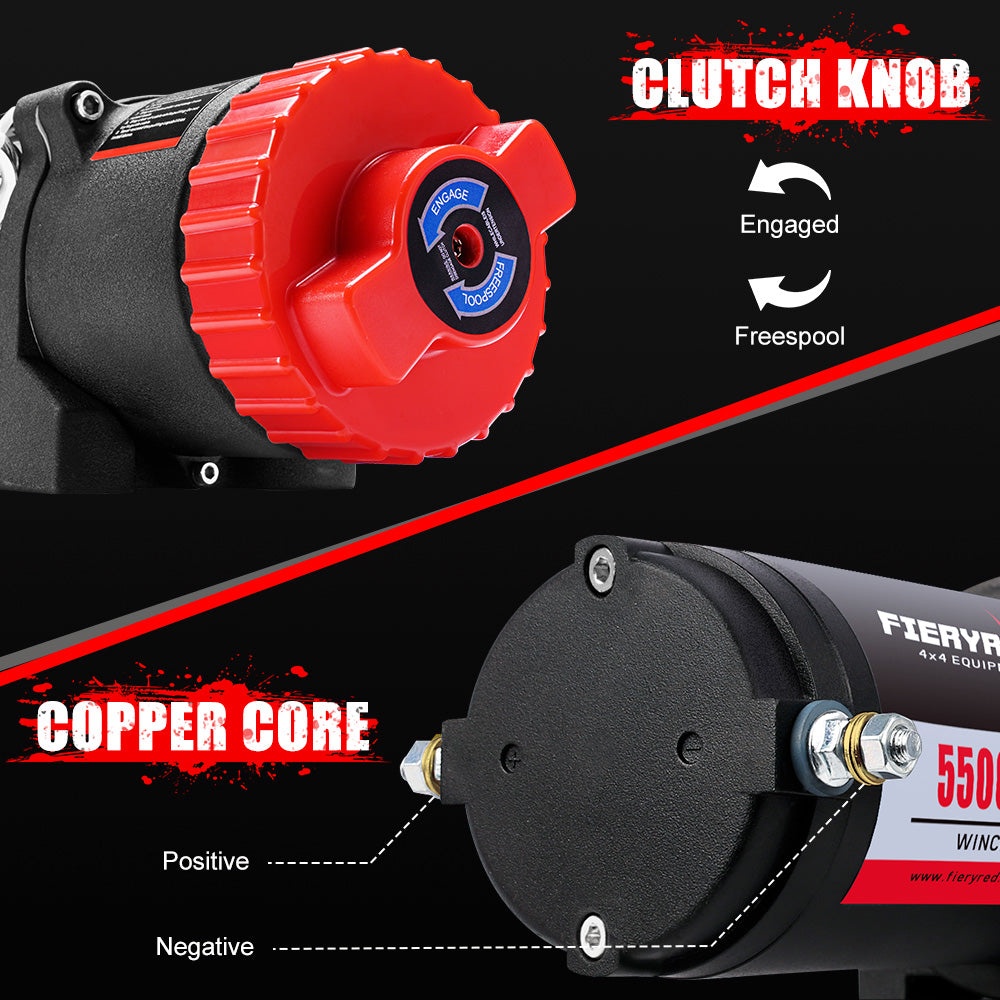

If you are travelling through a muddy river or exploring the backcountry, you never know when your ATV or UTV might become stuck. This amazing Fieryred Electric Winch 12V 5500LBS Synthetic Rope may truly be a get out of jail free card for an off-road driver. This kit includes synthetic rope, an impact- and corrosion-resistant galvanised steel hook, powder-coated aluminium hawse fairlead and steel mounting plate, and everything else you need to rescue your car from mud or uneven terrain. This ATV Electric Winch 12V 5500LBS Synthetic Rope has a 2.2 horsepower permanent magnet motor and a 3-stage planetary gear train with a 166:1 ratio for faster and quieter pulling power than ever. This UTV Electric Winch 12V 5500LBS Synthetic Rope has a pulling capacity of up to 5,500 pounds and electric pulling and spooling. It also has a clutch for manual spooling. As an added bonus, a red and a grey spare clutch are provided to give your ATV/UTV a more fashionable look.
Features
Capacity: | 5,500lbs (2,495kg) |
Voltage: | 12V DC |

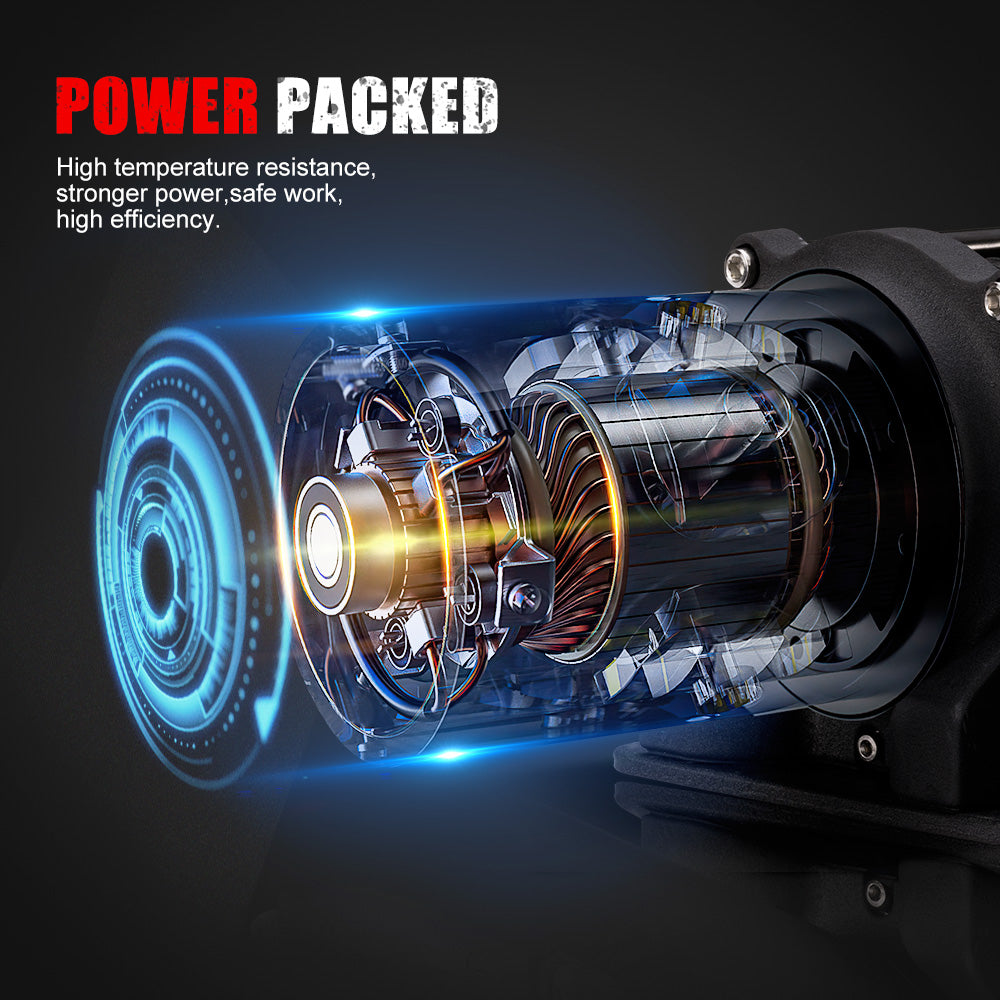

Motor Type: | Permanent Magnet |
Motor: | Input :3.2kW/4.3hp ; Output: 1.6kW/2.2hp |
Gear Ratio: | 166:1 |
Max Amp Draw / Line Pull: | 280A / 5,500lbs |
Max Line Pull / Line Speed: | 5,500lbs / 3.6 ft per min (1.0m per min) |
Drum Size: | 2’’ x 5’’ (Φ50.4mm x 126mm) |

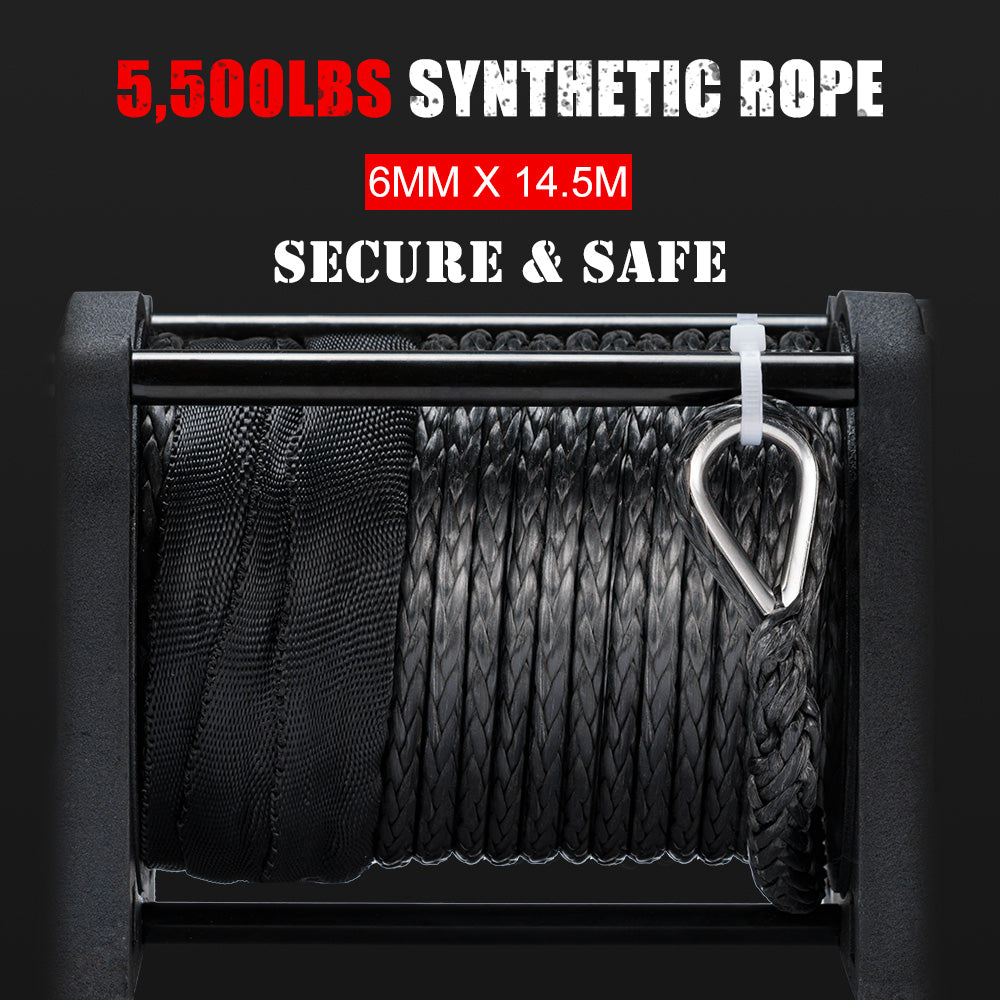

Synthetic Rope(Diameter): | 0.24"" (6mm) |
Synthetic Rope(Length): | 47.57 ft (14.5m) |
Cable from Control Box to Battery Lugs (Length): | 2 ft (0.6m) |
Cable from Control Box to Motor Lugs (Length): | 6 ft (1.8m) |
Cable with Switch (Length): | 8.53ft (2.6m) |
Hook Size: | 5/16’’ |
Breaking Strength of Synthetic Rope: | 9,500lbs (4,309kg) |
Control: | Wireless Remote Control & Wired Remote Control |
Weight: | 14.2kg |

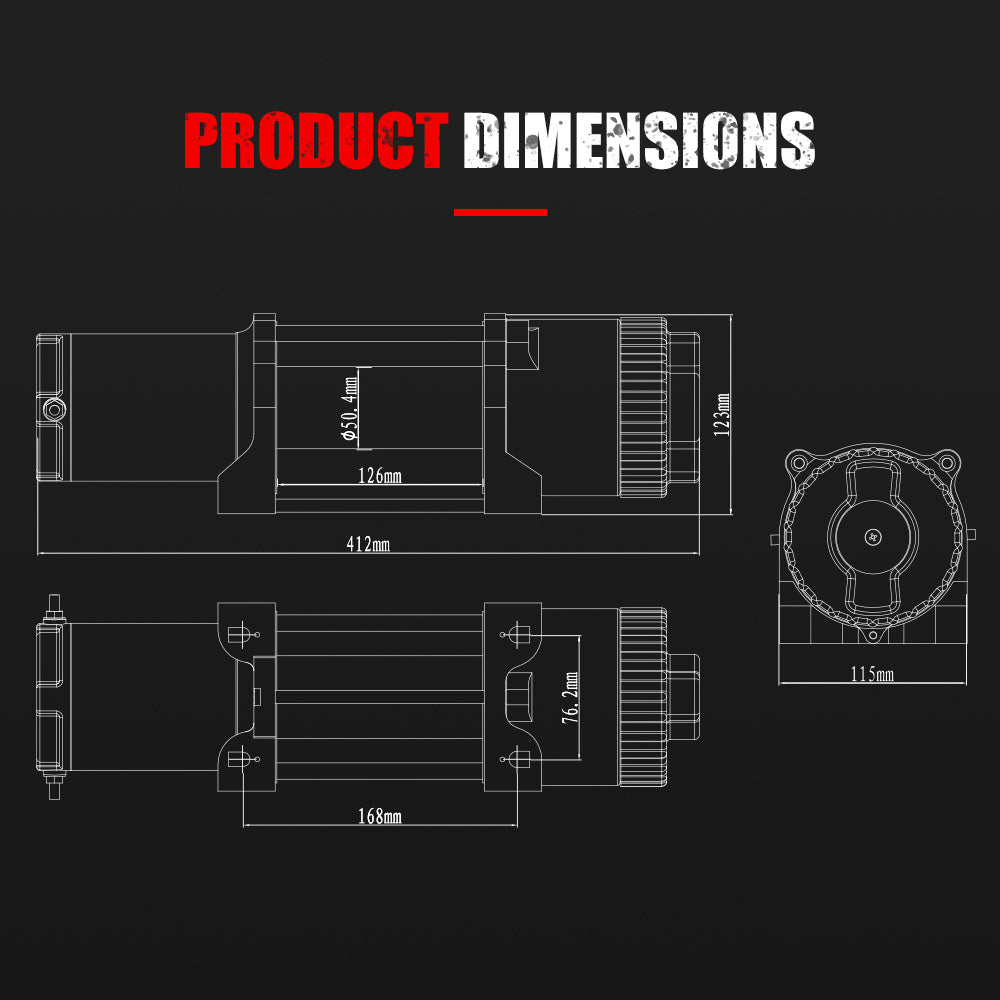

Product Size: | 48cm x 33.5cm x 21.5cm |
Package Includes:
Warranty:
2 Years WarrantyThanks for subscribing!
